Description

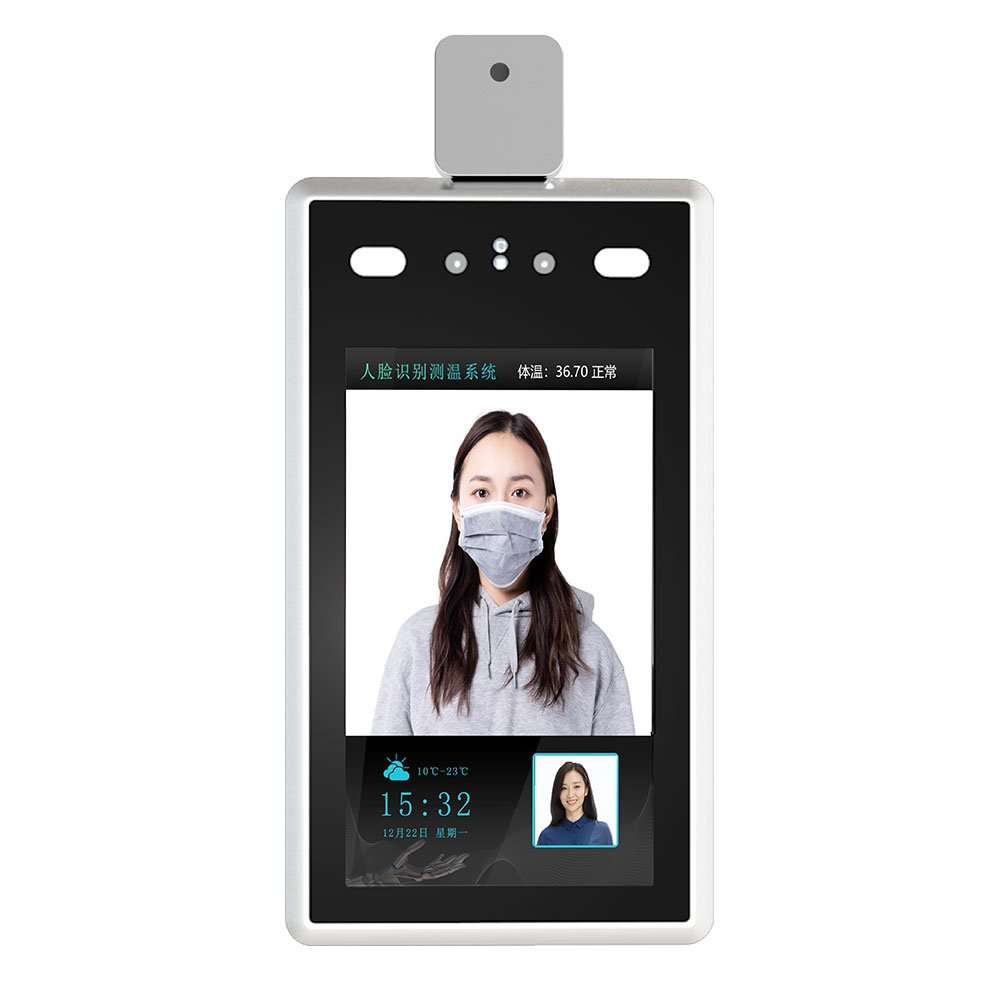

The 7-inch temperature measurement panel is a perfect combination of traditional applications based on face recognition and infrared temperature detection. Suit for Hotel, access gate, office building, school, shopping mall, communities, public services.
* Key Features
- Non-contact automatic body temperature detection, brush human face and perform high-precision infrared human temperature acquisition at the same time, fast and high effect.
- Temperature measurement range 30-45 (℃) Accuracy ± 0.3 (℃)
- Automatically identify unmasked personnel and provide real-time warning
- Support mid-range temperature measurement and real-time warning ofhigh temperature
- Support temperature data SDK and HTTP protocol docking
- Automatically register and record information, avoid manual operation, improve efficiency and reduce missing information
- Support binocular live detection
- Unique face recognition algorithm to accurately recognize faces, face recognition time <500ms
- Support human motion tracking exposure in strong backlight environment, support machine vision optical wide dynamic ≥80dB
- Adopt Linux operating system for better system stability
- Rich interface protocols, support SDK and HTTP protocols under multiple platforms such as Windows / Linux
- 7-inch IPS HD display
- Waterproof level is IP34
- MTBF> 50000 H
- Support 22400 face comparison library and 100,000 face recognition records
- Support one Wiegand input or Wiegand output
- Supports fog through, 3D noise reduction, strong light suppression, electronic image stabilization, and has multiple white balance modes, suitable for various fields
- Support electronic voice broadcast (normal human body temperature or super high alarm, face recognition verification results)
* Specification
Model | iHM42-2T07-T2-EN | iHM43-2T07-T2-EN |
Hardware | ||
Chipset | Hi3516DV300 | |
System | Linux operation system | |
RAM | 16G EMMC | |
Image sensor | 1/2.7″ CMOS | |
Lens | 4.5mm | |
Camera Parameters | ||
Camera | Binocular camera supports live detection | |
Effective pixel | 2Mega pixel,1920*1080 | |
Min. lux | Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 | |
SNR | ≥50db(AGC OFF) | |
WDR | ≥80db | |
LCD | 7inch TFT monitor,resolution:600*1024 | |
LCD display | 16:9 | |
Audio Speaker | 2* (8Ω1w) | |
Face Recognition | ||
Height | 1.2-2.2 M, angle adjustable | |
Distance | 0.5-2 Meters | |
View angle | Vertical ±40 degree | |
Reco. Time | ＜500ms | |
Temperature | ||
Range | 30-45（℃） | |
Accuracy | ±0.3（℃） | |
Distance | 0.3-0.8m | |
Response time | ＜300ms | |
Reco. Accuracy | wear mask+ face recognize >85%, | |
Mask detect | When no wear mask, have voice reminding | |
Interface | ||
Internet interface | RJ45 10M/100M Ethernet | |
Weigand port | Support input/output 26 and 34 | |
Alarm output | 1channel relay output | |
USB port | 1USB port (Can be connected to ID identifier） | |
General | ||
Power input | DC 12V/3A | |
Power consumption | 20W(MAX) | |
Working temperature | 0℃ ～ +50℃ | |
Humidity | 5～90%, no condense | |
Dimension | 123.5(W) * 84(H) *361.3(L)mm | 123.5(W) * 45.5(H) *266(L)mm |
Weight | 2.1 kg | 1.9 kg |
Column aperture | 27mm | |

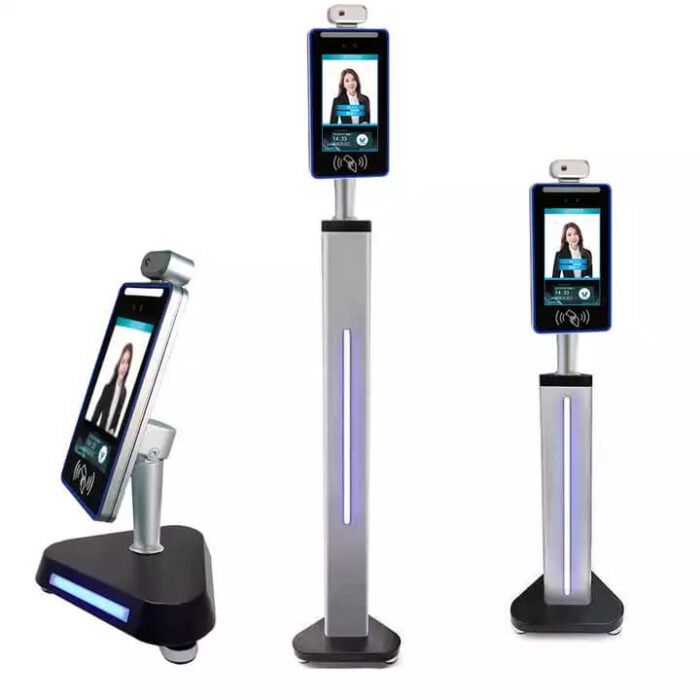

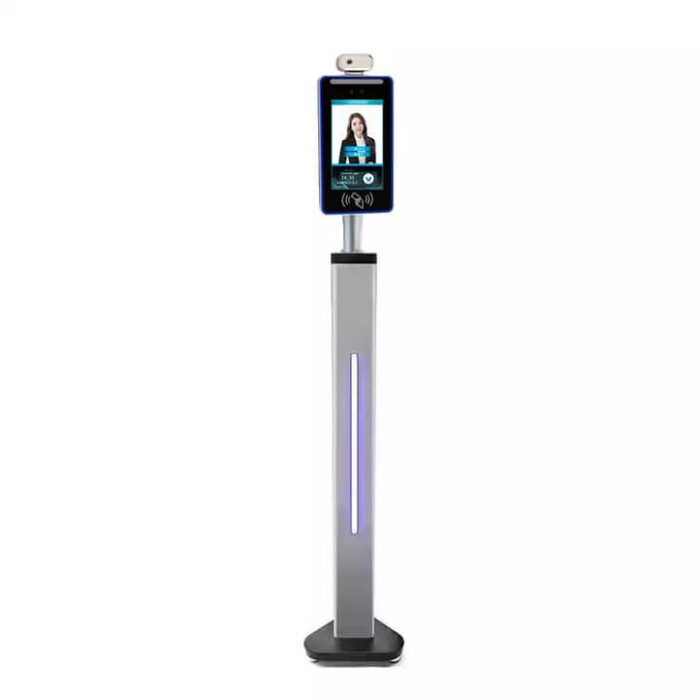

Installation Mode | Stand type | Wall Mount |
Packaging & Shipping
* Packing List
Temperature measurement panel | 1 unit |
Installation and user manual | 1 Pcs |
Warranty card | 1 Pcs |
Spare parts package | Post: 1 set of waterproof network head, 6 pcs tie Wall mount: 1pcs accessory kit, 1pcs gimbal bracket, 1pcs wall mount bracket, 1 set of waterproof network head |
* Installtion
Precautions
1. Device working temperature : 10 ℃ -40 ℃. Do not Install under the vent and ensure that there is no heating source within 3 meters;
2. People entering the room from a cold outdoor environment will affect measurement accuracy. The forehead temperature test needs to be performed indoors without covering the forehead for three minutes and the temperature is stable;
3. The temperature read by the temperature measuring device is the temperature in the forehead area. When there is water, sweat, oil orthick makeup on the forehead, or the elderly have wrinkles, the read temperature will be lower than the actual temperature. Make sure there is no hair or clothing covering this area.
* Face recognition with face mask temperture detection
Can be identified without taking off the mask avoid the rick of infection. Set up Mark recognition in the computer as below:
