Description

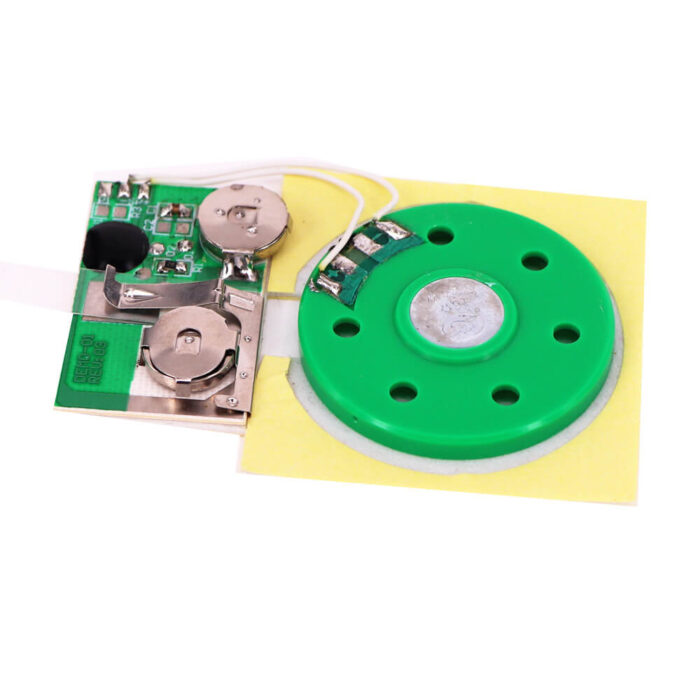

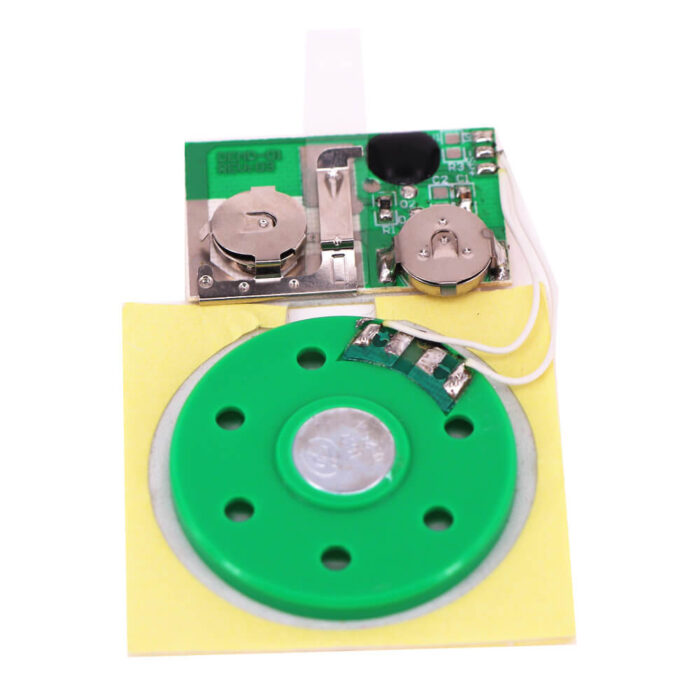

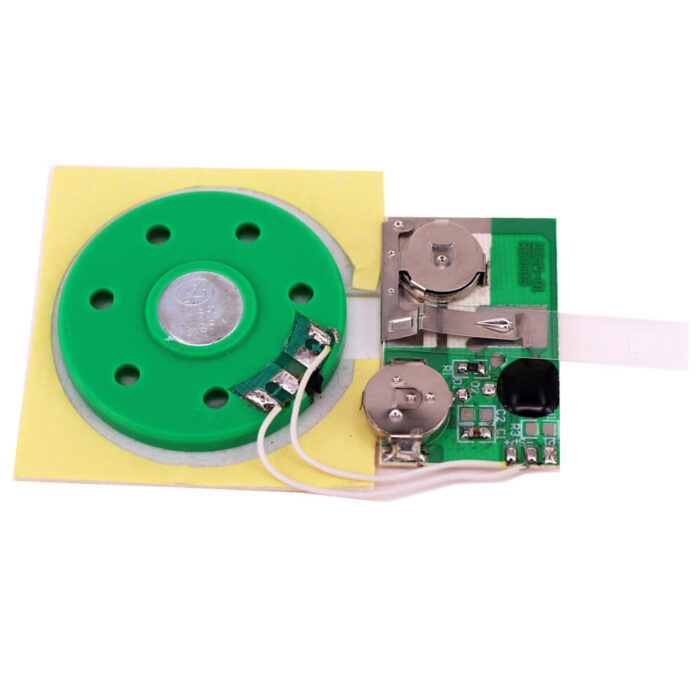

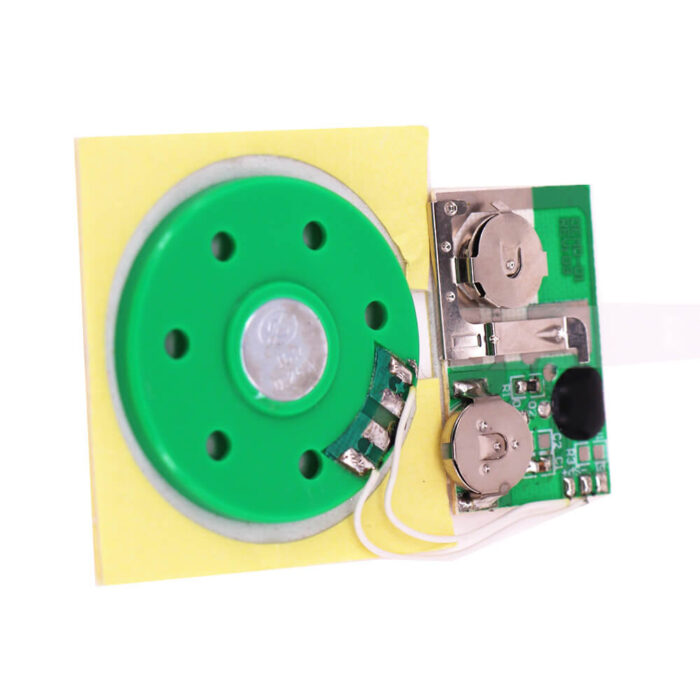

Pre-recording and Recordable Music Greeting Card Sound Module/Voice Ic Chip
1.1-100 seconds sound programming modules for greeting cards & toys. Customers can record any music/ voice into the modules.
2. Factory supply IC programmer and online instruction.
3. Finish programming within 20 seconds.
4. Can be added with extra functions, like Light Sensor, Human Body Sensor, etc:
Voice recording function.
LED flashing function.
Motion sensor and human body sensor functions.
Parameter:
1. Material: PCB board(40X30mm), speaker(φ40mm), battery(3*AG-10),Press button and recording IC
2. Speaker:dia 40mm
3. PCB size:40X30mm
4. Battery:3*AG-10
5. Can be put on the electronic toys,dolls.
6. Pre-recorded/recording time: 3 to 300 seconds, just as your requirement;.
7. Pre-recording voice file as your favorite(WAV/VOC format)
8. Can be activated by press button, slip tap, shake, and light/motion sensor
9. High quality at reasonable price and prompt delivery service
10.You may choose to set regular music on it or record the message by yourself.
| item name | programmable mini waterproof custom voice push button recordable sound module chip |
| power supply | 1.5-4.5v |
| suitable for | for greeting cards promotion plastic toys,gifts |
| messages | voice,music,and sound are available |
| use time | play more than 500 times |
| customized | shape,size,color,type,music file,sound duration all specifications accept customized |
| speaker size | 40mm etc. |
| to use | press the button and the music play automatic |
| battery | 3pcs AG3 button cell batteries |
| certification | CE ROHS EN71-1/2/3 |
| OEM/ODM | yes |
Note: We have a series of products from musical chip, recording sound modules, voice recognition module,USB audio module, download sound chip, recordable greeting card, squeeze box music, led flashing modules for toys, gifts and cards to Bluetooth player, etc.
How to use it
1.Uploaded the sound source to computer(sound source can be recorded by your phone)
2.Copy to your removable disk direactly.
3.Playing by button control.(sound duration can be customized)
Ways to pre-record
We offer the musical chip can be designed to connected with a microphone / a usb cable or a TF card.
1. Microphone
A record button would be designed to record your own voice or sound source. Broadcast quality depends on entry of audio quality and environmental noise.
2. IC
Send us your sound source,we insert the sound source into IC.
3. USB
Uploaded the sound source to your computer(sound source can recorded by your cell-phone), then copy to your removable disk directly. The sound duration can be customized.
4. TF card
Download the music to TF card, and insert the card to module, then the module will play music which inside the TF card.
Why choose us:
1. We are the manufacturer of customized sound & luminous module, electronic gifts & toys and so on.
2. Our company develop and design customized products independently, which with high quality and reasonable price.
3. Professional team has more experience with more than 10 years development.
4. Skillful workers ensure quality and speed.
5. Customer satisfaction is our top priority.
6. Rapid response is our working standard.
