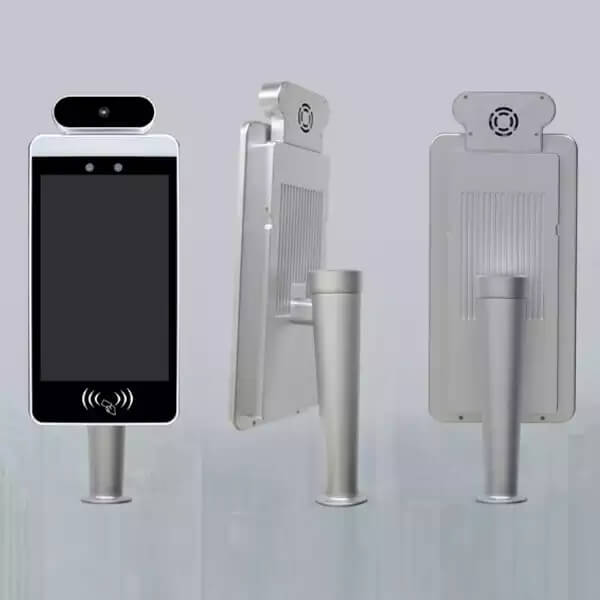

8 inch LCD AI Face Recognition Thermal Camera Infrared Thermometer AD10

  • It can measure human temperature and facial recognition together, avoid touch people by people, easy for management.
  • Support to recognize strangers.
  • Precise temperature ±0.2℃
  • It can keep a long-time stable work, avoid mistake of human tired work.
  • It applies to the entrance of the school, factory, government departments, etc.

Description

8 inch AI infrared face recognition thermometer is applicable to office areas, hotels, office buildings, schools, shopping malls, shops, communities, public services and management projects that need to use face access control places.

Main Features:
1. 8-inch IPS full-view LCD display.
2. Industrial-class appearance, waterproof and dustproof design which is stable and reliable.
3. Supports 30,000 face database. The 1: 1 comparison recognition rate is more than 99.7%, the 1:N  comparison recognition rate is more than 96.7%~0.1% misrecognition rate, and the live detection
accuracy rate is 98.3%~1% misrejection rate. Face recognition pass speed is less than 1 second.
4. Supports accurate face recognition and comparison while wearing a mask.
5. Using industrial-grade binocular wide dynamic camera, night infrared and LED dual photo flood lamp.
6. Support processors with strong performance: Rockchip RK3288 quad-core processor, Rockchip RK3399 six-core processor and Qualcomm MSM8953 octa-core processor.
7. Supports human body temperature detection and temperature display. The best temperature detection distance is 0.5 meters. The longest distance at which body temperature can be measured is 1 meter. The measurement error is plus or minus 0.5 ℃.
8. It only takes a few seconds for detection, and supports automatic alarm for body temperature abnormality.
9. Attendance temperature measurement data is exported in real time.
10. Supports various peripheral expansions such as ID card reader, fingerprint reader, IC card reader, two-dimensional code reader, etc.

Parameters

Camera









Resolution2 million pixels
Camera Typebinocular wide dynamic camera
ApertureF2.4
Focusing distance50-150cm
White BalanceAuto
Photo flood lightLED and infrared double flood light
Screen



Screen size8.0 “IPS LCD Screen
Resolution800 × 1280
Touchoptional support
ProcessorCPURK3288 quad core (optional rk3399 six core, msm8953 eight core)
StorageEMMC 8G












Interface















Network moduleSupports Ethernet, wireless (WiFi)
Audiosupport 2.5W/4R
USB1 USB OTG, 1 USB host standard A port
Serial communication1 RS232 serial port
Relay output1 door opening signal output
Wigan interface1 Wigan 26 / 34 output,1 Wigan 26 / 34 input
Wired Network1 RJ45 Ethernet socket
Upgrade buttonsupports the uboot upgrade
 FunctionCard readeroptional IC card reader/ID card
Face recognitionsupport detection and tracking of multiple people at the same time
Face LibraryUP to 30,000
1:N face recognition Support
1:1 face comparison Support
Stranger detection Support
Identify distance configurationSupport
UI interface configuration Support
Upgrade remotely Support
InterfaceInterfaces include device management, personnel

/ photo management, record query, etc.

Deployment

method

 Support public cloud deployment, privatized

deployment, LAN use, stand-alone use



Infrared thermal

imaging module



Body temperature detectionsupport
Temperature detection distance1m (the best distance is 0.5m)
Temperature measurement accuracy≤± 0.5 oC
Temperature measurement range10 oC ~ 42 oC
Visitors modelsupport for normal temperature of visitors
Temperature alarmsupport
