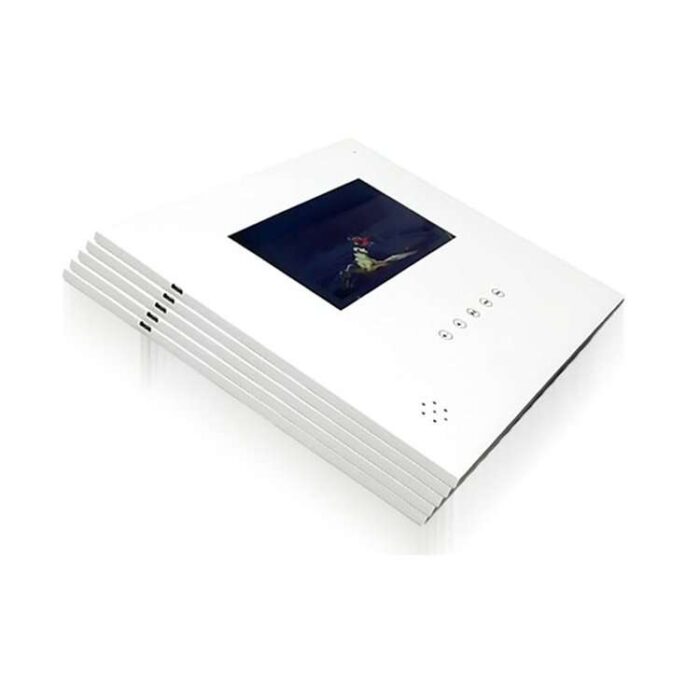

5 inch IPS Video Module for Custom Brochure Design

Brochure Size: 210mm x 148mm landscape or portrait
Screen Size: 5 inch Premium IPS (109mm x 62mm)
Memory: 256MB (20/30 mins of video time)
Function Buttons Available: Play, pause, on/off, volume up & volume down, previous, next.


Description

We specialise in the production of innovative, high quality and tactile printed marketing tools. We utilise cutting-edge printing techniques, enabling us to create the unusual and you to communicate your message in a uniquely different way.

TV in a Card Video Brochures may include individual video select buttons, such as play/pause, volume up, volume down, mute, next video, previous video, fast forward, rewind, replay, on/off and slide show (of images).Video brochures (sometimes referred to as video cards, TV in a card, or video packs) provide a powerful platform on which to deliver a full multi-media presentation.

By combining printed brochures with LCD screen technology, you can play and read your marketing message free of wires, internet access or security worries at any time and in any place.

Parameter information
Item Name  High quality 2.4,4.3,5,7,10 inch lcd video invitation business card brochure
Supply Type  OEM/ODM
Display Size  2.4inch,4.3inch,5inch,7inch,10inch
Video format  MP4,3GP,AVI MOV,ANI,ETC.
Picture format  BMP,JPG,JPEG,ETC.
Music format  MP3,WMA,PCM,ETC.
Power on/off  Light sensor, Magnet switch, motion sensor, push buttons
Paper Size  A4,A5 or customized size
Usage  Advertising Brand,Business Gift,Wedding Invitation,Brand promotion.
Product style  Aritifical
Video resolution  Hd video maximum 1920*1080 minimum 320*240.
Product categories  lcd video invitation business card brochure

Screen accurate information

Screen SizeDisplay AreaScreen RatioResolutionBatteryWorking time
2.4 Inch TFT LCD  Screen48mm*36mm4:3320*240320~24000mA>=2hours
4.3 Inch TFT LCD  Screen94mm*53mm16:9480*272320~24000mA>=2hours
5 Inch TFT LCD Screen110mm*61mm16:9480*272320~24000mA>=2hours
5 Inch IPS Screen107mm*64mm16:9800*480320~24000mA>=2hours
7 Inch TFT LCD  Screen152mm*85mm16:9800*480320~24000mA>=2hours
7 Inch IPS Screen152mm*85mm16:91024*600320~24000mA>=2hours
10 Inch TFT LCD  Screen221mm*124mm16:91024*600320~24000mA>=2hours

Video Play: play can be activated by auto start on opening, on/off switch, light sensor, or, motion sensor.Up to 4 hours of video can be stored on a single brochure.

Memory and Video Play Time (estimate and guide only): 128Mb (up to 7min), 256Mb (up to 15min),512Mb (up to 30min), 1Gb (up to 60min), and so on *** Play time is subject to video compression and format used.

Battery capacity: Lithium Polymer rechargeable 500mAh with 1hour continuous playback. Higher capacity batteries up to 8000mAh are available upon request.

Buttons: on/off, video select, play/pause, next/FF, prev/REW, volume up, volume down. Up to maximum of 10 buttons are possible on a single video brochure.

Standby Screen (Splash): usually a company logo or product shot supplied as a JPEG which will display for 1-2 seconds whilst the video is booting up, referred to as Splash screen, or, the JPEG image can remain on standby until a video button is selected.

How do they work? It’s pretty simple. You open the brochure, and your video comes on. Each video card is capable of holding from 30 seconds up to 8 hours of video. You will be able to customize the size, color, shape, screen size, etc. The design of the brochure is completely up to you (or we can help you too!). Let your imagination go wild because we can handle any size/shape from a box to a folder or even a book!

Additional information

Weight1 kg

Q1: How can we order the video brochure from you?
Just contact us and send your information, our experience service team will provide the solution depend on your details.

Q2: Can we upload the video ourselves?
Yes, You can upload the video yourself after you receive the video brochure or video box, Just need connect it to computer by USB cable.

Q3: Can you send us the template / layout for the video brochure or video mailer?
Yes, We will send you template/layout for the brochure after confirmed details.

Q4: What format (file extension) is required for final art/design?
The format of design should be AI,PSD,CDR or PDF.

Q5: Can you just provide the blank video greeting card without printing?
Yes, we can provide the blank paper card.

Q6: Can you just provide the video module (electronic part) without greeting card/brochure?
Yes, we can just provide the video module

Q7: Can we lock or hide the video file? So that others can not change or delete the video?
Yes, we can set password or hide the video file at your request.

Q8: Can you just provide the video module (electronic part) without greeting card/brochure?
Yes, we can just provide the video module

Q9: How many minutes of the video can be played?
128M memory can play around 15 minutes according to video file setting normally. We would like to recommend the suitable capaticty depend your video length for cost saver.

Q10: How long for the battery lasting?
Usually designed for 90 minutes to 2 hours, we can use big capacity battery if in need.

1. idea
You are planning a mailing or have a need for creative print products for your sales or marketing activities. Let us brainstorm together.

2. consulting
We support you in finding ideas and advise you on implementation possibilities. Sometimes it’s easier than you think.

3. development
After we have decided together which card it should be, our designers and paper engineers get to work. They create digital mockups and white samples for the first live impression.

4. design & final artwork*
Your designs must now be transferred to the die-cutting outline. The ball is now in your or your agency’s court. If you are not working with a design or creative agency, we will be happy to take care of this service as well.*

5. production
Now you can sit back, relax and wait for your finished product! We take care of the rest. We produce professionally and deliver on time at the agreed date to the address of your choice.

*You are welcome to take a look at our project here.
