Floor Standing Series
21.5'' LCD Digital Signage Advertising Player with 3000ml Hand Sanitizer Dispenser A21

Hand Sanitizer Dispenser Wall Mount LCD Digital Signage Kiosk 21.5 Inch 3000ml Advertising Player



Features
(1) 21.5" digital signage with automatic hand sanitizer dispenser, which can be used in Hospital/Meeting Room/Reception Desk/Hotel
Lobby/School/Train Station/Airport/Toilet, etc.
(2) It's fully automatic working with hand sanitizer in perfect/smooth condition(no jam condition);
(3) It's industrial designed with full metal housing and stable functions, front side easy refill the sanitizer with a large volume
load 1000ml.
(4) It's optional 3 nozzles: gel/liquid/foam for your selection with extra cost.

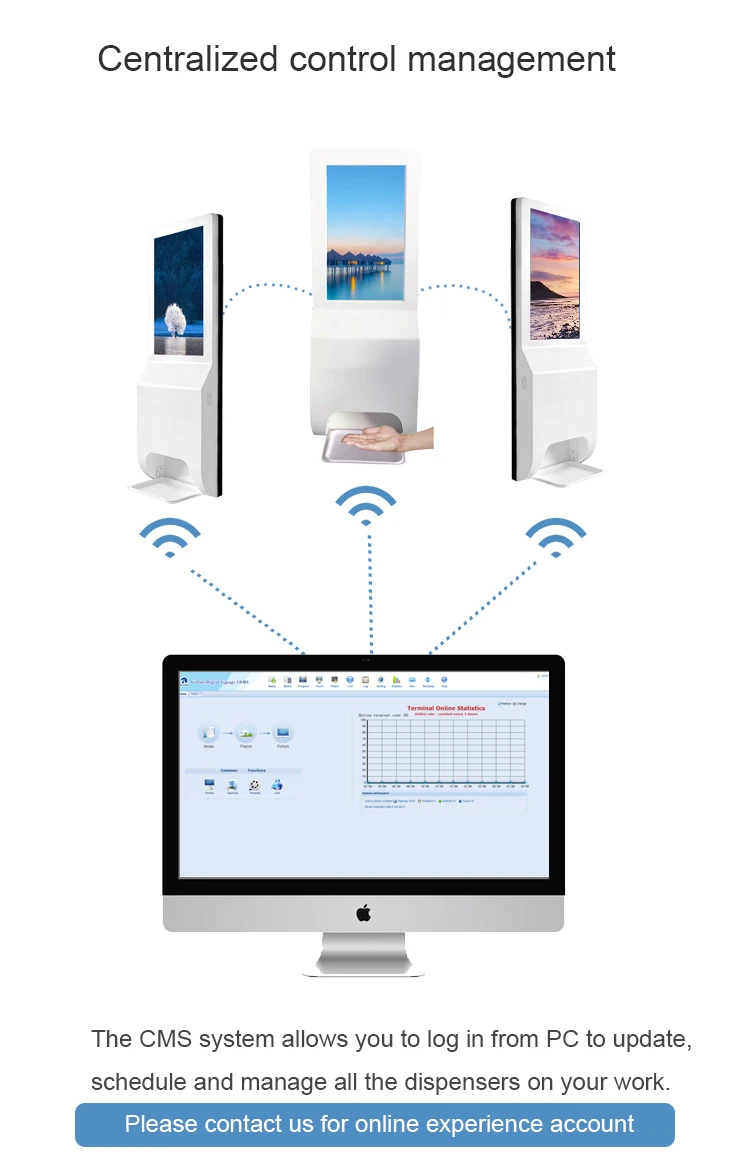

(5) Android version supports WiFi/RJ45 and touch panel, and CMS cloud software(PC-Cloud Server-dispenser)



Precautions
1. Make sure that the socket used is well-grounded and connected to the power source away from high-power equipment.
2. Keep the power supply stable, and do grounding protection to avoid lightning strikes.
3. Do not squeeze the touch area of the whole machine enclosure or cabinet enclosure
4. Non-professionals are forbidden to touch the internal circuit of the whole machine to avoid electric shock or damage to the circuit.
5. Avoid using or storing in strong magnetic, high temperature, high humidity, high acid/alkali/salt environments.
6. Keep away from flammable materials, gas and dust.

 Hand Sanitizer Dispenser Wall Mount LCD Digital Signage Kiosk 21.5 Inch 3000ml Advertising PlayerHand Sanitizer Dispenser Wall Mount LCD Digital Signage Kiosk 21.5 Inch 3000ml Advertising PlayerHand Sanitizer Dispenser Wall Mount LCD Digital Signage Kiosk 21.5 Inch 3000ml Advertising PlayerHand Sanitizer Dispenser Wall Mount LCD Digital Signage Kiosk 21.5 Inch 3000ml Advertising PlayerHand Sanitizer Dispenser Wall Mount LCD Digital Signage Kiosk 21.5 Inch 3000ml Advertising Player

Product Parameter
ITEM SPECIFICATION
CPU

Rockchip RK3288W 4-core ARM Cortex-A17 clocked at 1.6GH

Chipset Hi3751 V310
GPU Mali-450 Quad-Core 3D GPU (supports OpenGL ES 2.0/1.1/1.0 OpenVG 1.1)
RAM 2GB DDR3 as standard
Storage 16GB
OS Android 7.1
Display 21.5” TFT LCD, 1920 x 1080p, LVDS
Video-Input Format 480i, 576i
Video System PAL / NTSC / SECAM
Video Level 1.0 VP-P +/- 5%
HDMI 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K2K
  UART TTL
USB MPEG 1/2, H.264, VC-1, MPEG-4 up to FHD
TF-Card (1920x1080), RM/RMVB up to 720P
Audio Input CVBS Audio (L/R RCA input, 0.2 ~ 2.0 VRMS)
Audio Decode Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD, MPEG
L1/L2, MP3, AAC_LC, HE_AACV2, LPCM, APE, FLAC, OggVorbis, ARM-NB, ARM-WB, G.711(u/a)
Video Output CVBS (format: 480i, 576i; video level: 1.0VP-P +/- 5%)
Audio Output CVBS Audio L/R RCA Output (250mVRMS +/- 10%)
Frequency 100Hz ~ 15KHz @ +/-3dB (0dB reference signal at
Response 1KHz)
Max. Output 2 x 8W (8ohm) THD+N < 10% @ 1KHz
Power
Power DC 12V (DC input)
3.3V / 5V / 12V (to panel)
Standby Power Consumption < 0.5W
Connection WIFI 802.11 b/g/n, built-in module optional, need ANT
Ethernet 10/100M auto-identification and DHCP, USB driver
Data Network 3G/4G
COMB Filter 3D
Deinterlace 3D
Work Temp. -10 ~ 55oC
Storage Temp. -10 ~ 60oC
Product Size

Hand Sanitizer Dispenser Wall Mount LCD Digital Signage Kiosk 21.5 Inch 3000ml Advertising Player
